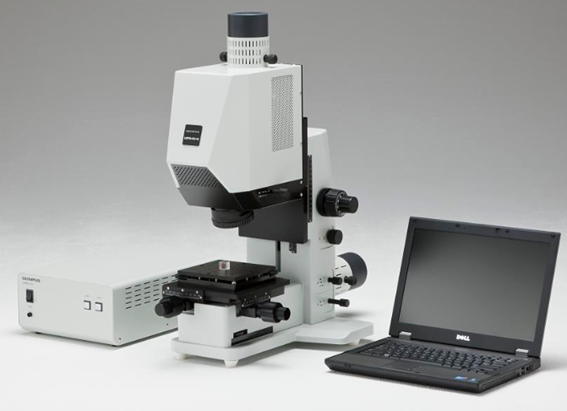

Lens Spectral Reflectivity Measurement Device
- Model：USPM-RU W
- Specification：Quick, highly repeatable measurements; detailed graph analysis
Product Introduction
Optical Metrology (USPM-RU W)
The USPM-RU W is a reflectometer that provides highly accurate spectral reflectivity measurements of small, curved, and thin samples without interference from rear surface-reflected light.
Features:
- Reduce light reflected from the surface
- Quick result
Applications:
- Individual types of lenses (Eyepiece lens, pick-up lens, etc.)
- Prismatic reflectivity and thickness measurement (Single layer film of mirror, prisms, or other coated components)
| USPM-RU W Specifications: Lens Spectral Reflectivity Measurement Device |
| Measurement wavelength |
380nm - 780nm |
| Measurement method |
Comparison measurement using reference specimen |
| Sample N.A.* |
0.12 (using 10x objective lens) |
| 0.24 (using 20x objective lens) |
| * it differs from objective lens' N.A. |
| Sample W.D. |
10.1 mm (using 10x objective lens) |
| 3.1 mm (using 20x objective lens) |
| Sample curvature radius |
-1R - ∞, +1R - ∞ |
| Sample measurement range |
Approximately ø60 µm (using 10x objective lens) |
| Approximately ø30 µm (using 20x objective lens) |
| Measurement repeatability (2σ) |
±0.1 % and less (during 380 nm - 410 nm measurement) |
| ±0.01 % and less (during 410 nm - 700 nm measurement) |
| Display resolution |
1 nm |
| Measurement time |
A few secs-several secs (it differs from sampling time) |
| Light source |
Halogen lamp 12 V 100W |
| Z-direction movement range of the stage |
85mm |
| PC interface |
USB |
| Weight |
Unit Approximately 20 kg |
| Power source for light source: Approximately 3 kg |
| Control box: Approximately 8 kg |
| External dimensions |
Unit: 300 (W) x 550 (D) x 570 (H) mm |
| Power source for light source: 150 (w) x 250 (D) x 140 (H) mm |
| Control box: 220 (W) x 250 (D) x 140 (H) mm |
| Power Source |
Power source for light source: 100 V (2.8A)/220 V AC |
| Control box: 100 V (0.2A)/220V AC |
| Environment for use |
Installed at the horizontal plane with no vibration |
| Temperature: 23 ±5°C |
| Humidity: 60% or less |
| An environment is not subject to air fluctuation |
* Absolute accuracy complying with traceability system is not guaranteed.
