Product Details

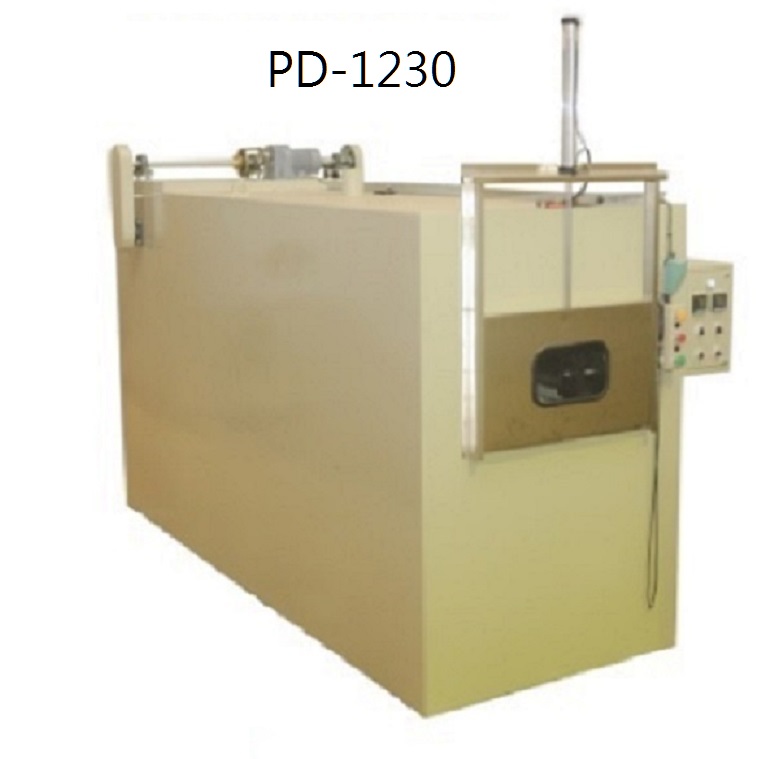

Lens Pre-heating machine

  • Model:PD-1230
  • Specification:

Product Introduction

Function
Performs as the initial drying oven to dry up the surface of plastic articles right after the hard-coating process

Features
  1. 1. Stable temperature control to ensure each piece is evenly dried
  2. 2. Reduces possibilities of surface contamination after hard-coating

Detailed Specification

Type

PD-1230

customization

Size

3400 x 1230 x 1850mm ( L x W x H )

Weight

around 1800KG



Materials

The enclosure of the machine SUS304 stainless steel

Color

□Stainless □Green □White

Voltage

Three phase three wire220V / 380V / 50HZ



Operation Power Supply

220V

Power

17KW



Air Discharge Fan

220V / 200KW



Electric Heat Pipe

220V / 12KW

Conveying Motor

220V / 1/4HP

Temperature Controller

The highest temperature reaches above 120°C



Door Open Method

□Pneumatic door  □Manual door

Capacity

32frames fall up
